Description

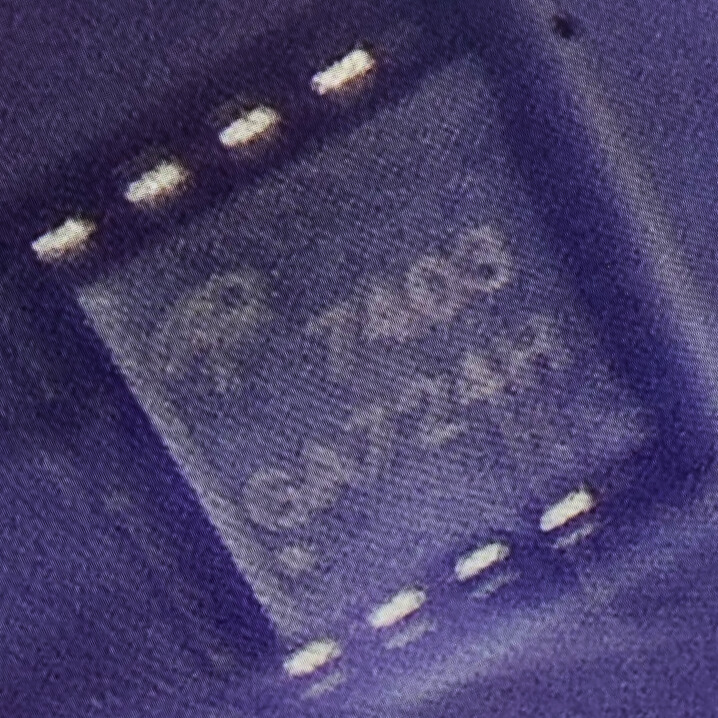

The AON7403 is a high-efficiency N-Channel Power MOSFET designed by Alpha & Omega Semiconductor (AOS) for use in compact, high-current switching applications. With a drain-source voltage (V<sub>DS</sub>) of 30V and a continuous drain current of up to 80A, it delivers excellent performance for demanding power systems.
Featuring an ultra-low R<sub>DS(on)</sub> of 1.8 mΩ at V<sub>GS</sub> = 10V, the AON7403 minimizes conduction losses and heat generation, improving system efficiency and reliability. It is housed in a DFN 5×6-8L thermally enhanced surface-mount package, making it well-suited for space-constrained designs.
✅ Key Features:
-
Type: N-Channel MOSFET
-
V<sub>DS</sub>: 30V
-
I<sub>D</sub>: 80A (T<sub>j</sub> = 25°C)
-
R<sub>DS(on)</sub>:
-
~1.8 mΩ @ V<sub>GS</sub> = 10V
-
~2.3 mΩ @ V<sub>GS</sub> = 4.5V
-
-
Low gate charge for fast switching
-
Package: DFN 5×6-8L (Thermally enhanced)
-
Applications:
-
Synchronous buck converters
-
Notebook power stages
-
DC-DC converters
-
Load switches
-
Battery-powered and portable devices
-
