Description
The NB680 is designed for use in power supply systems (e.g., in notebooks, embedded systems) where a compact, efficient 3.3 V rail is needed from a higher and variable input voltage.
Key Specifications & Capabilities
-
Input voltage range (VIN): 4.8 V to 26 V
-
Output voltage: Fixed 3.3 V (regulated)
-
Continuous output current: 8 A
-
Peak (transient) output current: 10 A
-
Integrated LDO: 3.3 V LDO with up to 100 mA output capacity
-
Control scheme: Adaptive Constant‑On‑Time (COT)
-
Auto tuning: Includes a DC auto‑tune loop for good load and line regulation
-
Clock output: 250 kHz CLK pin, which can drive an external charge pump
-
Switching frequency: ~700 kHz nominal
-
Quiescent current: ~100–140 µA typical
-
Protection & Safety Features:
-
Over-current limit (OCL / OCP)
-
Over-voltage protection (OVP)
-
Under-voltage protection (UVP)
-
Thermal shutdown
-
Output discharge on shutdown / faults
-
-
Operating modes / features:
-
Ultrasonic mode to avoid audible switching at light loads
-
Soft‑start at startup
-
Latch-off reset via EN or power cycling
-
-

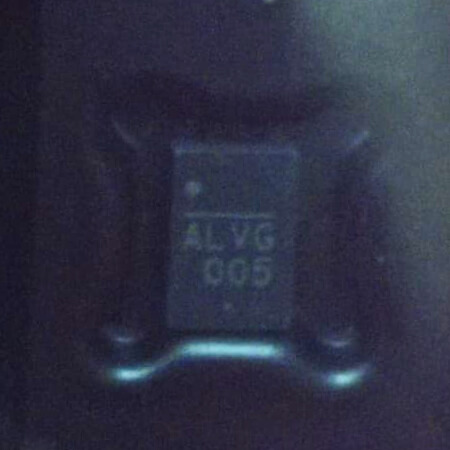

Package: QFN‑12, dimensions ~2 mm × 3 mm
-
Enable pins: Two enable inputs (EN, ENCLK) to control the buck and clock functions independently
-
Other features: Input under-voltage lockout (UVLO), internal reference (1% accuracy), built-in output switching between buck output and LDO as needed
