Description

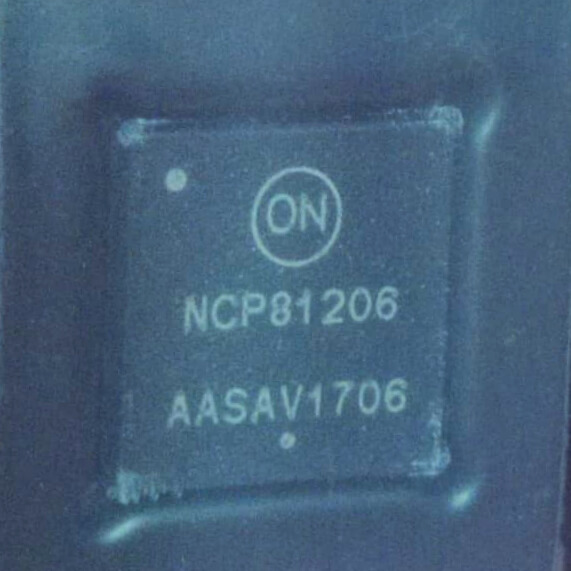

The NCP81206 is a compact, high-efficiency synchronous buck converter designed to provide a fixed 5 V output from a wide input voltage range of 4.5 V to 20 V. It integrates both high-side and low-side MOSFETs, reducing the need for external components and minimizing board space. The device operates at a switching frequency adjustable up to 2.2 MHz, allowing for the use of smaller inductors and capacitors, which is beneficial for space-constrained designs.
Key features include:
-
High Efficiency: Achieves up to 94% efficiency, reducing heat generation and improving overall system performance.
-
Low Quiescent Current: Consumes only 35 µA in quiescent mode, making it suitable for battery-powered applications.
-
Integrated Protection: Includes under-voltage lockout (UVLO) and thermal shutdown to protect the device and connected circuits.
-
Compact Package: Housed in an 8-pin QFN package, ideal for designs with limited space.
Typical applications encompass portable devices, point-of-load converters, and other compact power supply systems requiring efficient voltage conversion.
Please Note:
-
No Returns, Exchanges, or Warranty available.
-
Kindly verify the model number and ensure it matches your product before placing an order.
-
We guarantee premium quality.
-
All items are thoroughly inspected prior to shipping.
