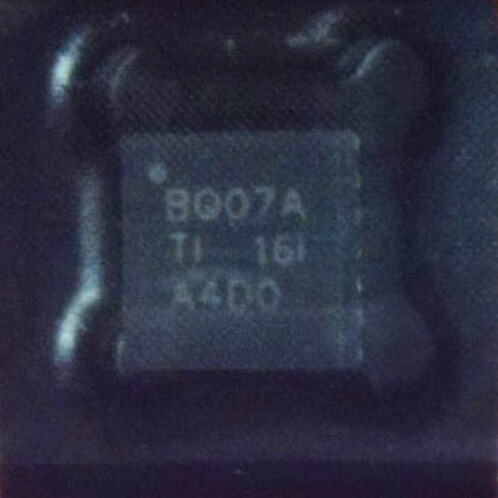

BQ07A BQ24707A BQ707A IC Charging IC

Description

The BQ07A (also known as BQ24707A) is a high-efficiency, SMBus-controlled battery charger IC designed for lithium-ion battery packs in notebook and portable devices. It integrates a synchronous NMOS-NMOS buck converter and supports 1 to 4 series Li-ion or Li-polymer cells.

The device allows the system host to program the charge voltage, charge current, and input current limit via SMBus. It includes programmable switching frequency (615 kHz, 750 kHz, 885 kHz), real-time analog current limiting via the ILIM pin, and built-in safety features such as over-voltage, over-current, and short-circuit protection.

Additional features include:

• Independent comparator with internal reference

• Adapter detection and power path control

• Internal loop compensation for stability

• Low battery discharge current in standby (~15 µA)

• Operating input voltage from 5 V to 24 V

• Packaged in a compact 20-pin QFN (3.5 mm × 3.5 mm)

The “A” variant offers a faster ACOK (adapter OK) delay, improving adapter detection response in time-critical applications.

No Return / No Exchange Policy / No Warranty.
Please check the model number and match it with your Product.
Super Quality

Every product crosscheck Before Shipping
