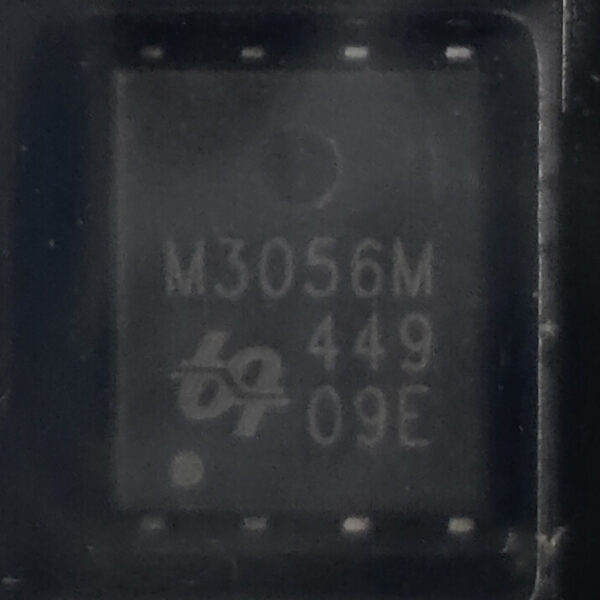

QM3056M6 QM3056M M3056M MOSFET QFN-8 | IC

Description

Key Features of M3056M MOSFET:

1. N-Channel MOSFET:

   • The M3056M is an N-channel MOSFET, which means the current flows from drain to source when a positive voltage is applied to the gate. It typically offers low on-resistance and is better suited for switching applications where current flows from the drain to the source.

2. Voltage Rating:

   • The M3056M has a Drain-Source Voltage (Vds) rating of 80V, meaning it can handle voltages up to 80V between the drain and source terminals.

3. Current Rating:

   • This MOSFET can handle continuous drain current (Id) of 56A (with proper heat sinking), making it suitable for medium to high-power applications.

4. Low Rds(on):

   • The M3056M MOSFET features a low on-resistance (Rds(on)), which means it has very low power loss when conducting current. This helps in reducing heat generation and improving the overall efficiency of the circuit.

5. Gate Threshold Voltage (Vgs(th)):

   • The gate threshold voltage, or Vgs(th), is typically around 1.0V to 3.0V, which is the voltage required between the gate and source to begin turning on the MOSFET.

6. Fast Switching Speed:

   • The M3056M MOSFET is designed for fast switching applications, which means it can be used in circuits requiring high-frequency switching.

7. Package Type:

   • The M3056M is typically available in TO-220 or TO-263 packages, which are commonly used for power transistors due to their ability to handle high power dissipation.

Please Note:

• No Returns, Exchanges, or Warranty available.

• Kindly verify the model number and ensure it matches your product before placing an order.

• We guarantee premium quality.

• All items are thoroughly inspected prior to shipping.
